Fanuc ARC Mate Robot Series

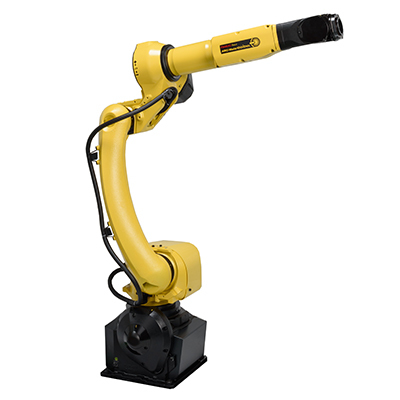

Fanuc ARC Mate 100iD/10L
The new generation of arc welding robots stands out based on its productivity advancements and rapid integration times. The long arm model of the ARC Mate 100iD series features outstanding axes speed and ultimate precision. Made specifically for narrow installations, this highly versatile arc welding robot can work on relatively large parts thanks to its large horizontal stroke and can also be installed upside down or angle mounted.
robots-for-more-information
Robot Specifications
- Axes:
- 6
- Payload:
- 0kg
- H-Reach:
- 10mm
- Repeatability:
- ±1636毫米
- Robot Mass:
- 0.03kg
- Structure:
- Mounting:
- Floor / Upside Down / Angle
Robot Motion Speed
- J1
- 260 °/s
- J2
- 240 °/s
- J3
- 260 °/s
- J4
- 430 °/s
- J5
- 450 °/s
- J6
- 720 °/s
Robot Motion Range
- J1
- 340(370)°
- J2
- 235°
- J3
- 455°
- J4
- 380°
- J5
- 360°
- J6
- 900°
