Motoman EPH100

Payload
Payload
100 kg
Reach
Reach
3010 mm
Axes
Axes
6
Applications
Applications
Appliance Automation Robots, Fiberglass Cutting Robots, Press Tending Robots

Request a Quote

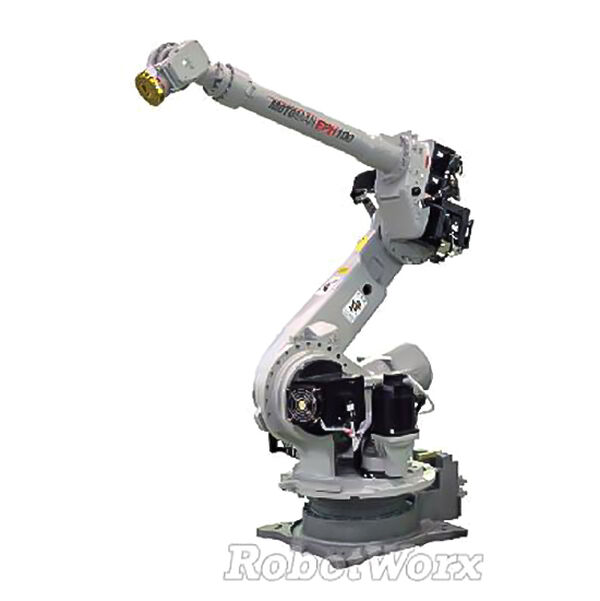

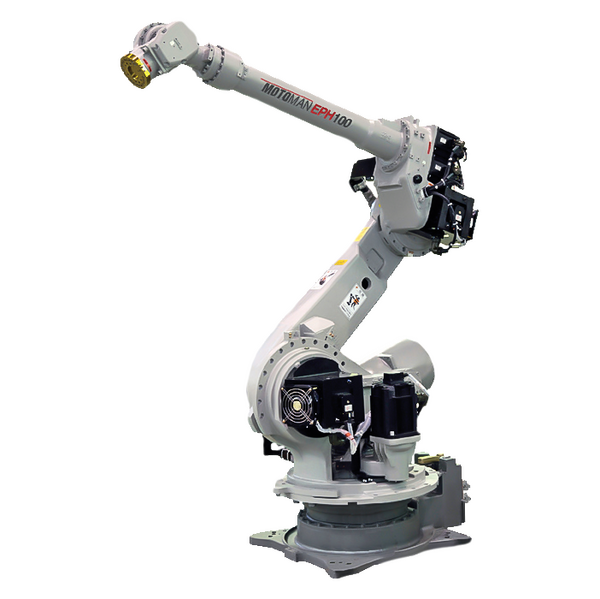

The MotomanEPH100robot is designed to perform press tending and handling applications. With its wide working envelope and high speed, theEPH100NX100robot is fast, flexible, and powerful, making it ideal for any production floor.

The used MotomanEPH100is also available for sale at Robots.com. The experts at Robots.com put all of their used robots through an intense reconditioning process, bringing them back to like-new condition. Furthermore, any used MotomanEPH100includes the Robots.com Value Package.

The new and used MotomanEPH100NX100robot are equipped with theNX100controller. TheNX100controller offers the ability to cut integration cost by controlling up to four robots at once. Easy to useINFORMIIIprogramming and dual-channel safety features make theNX100easy and safe to use.

Designed to be used with higher-performance drive systems, the new and usedEPH100can be operated with any application where high-performance handling is a must.

Payload
100 kg
Reach
3010 mm
Axes
6
Repeatability
0.3 mm
Mass
1520 kg
Structure
Articulated
Mounting
Floor
J1
110 °/s (1.92 rad/s)
J2
110 °/s (1.92 rad/s)
J3
110 °/s (1.92 rad/s)
J4
175 °/s (3.05 rad/s)
J5
145 °/s (2.53 rad/s)
J6
240 °/s (4.19 rad/s)
J1
±180°
J2
+76° - 60°
J3
+230° - 137.5°
J4
±360°
J5
±130°
J6
±360°
