Motoman Handling Robot Series

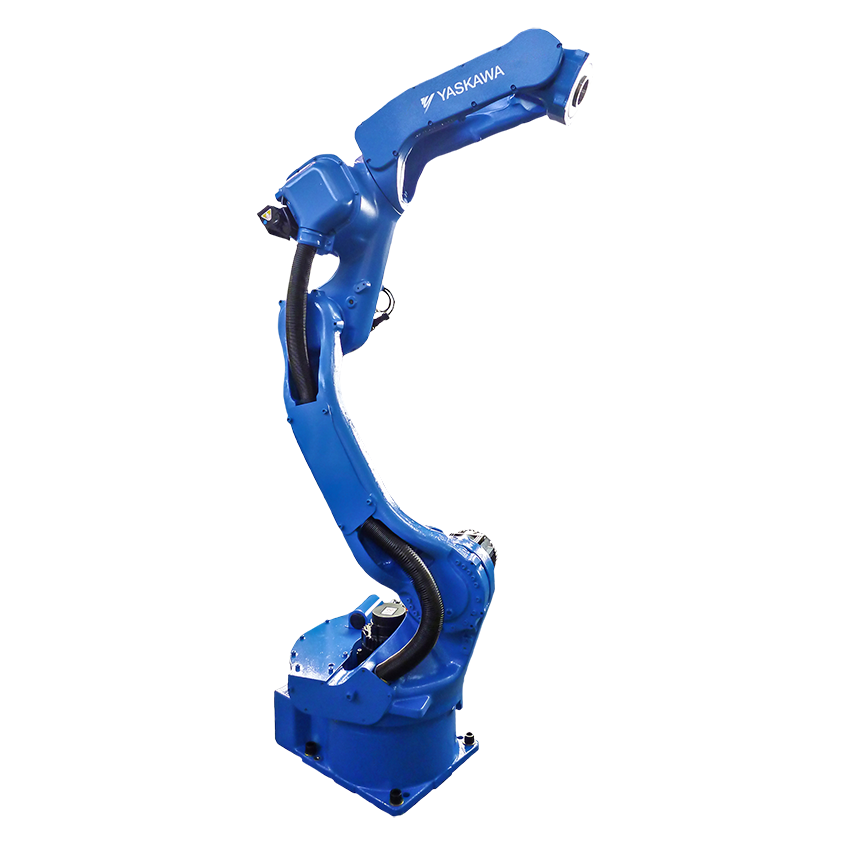

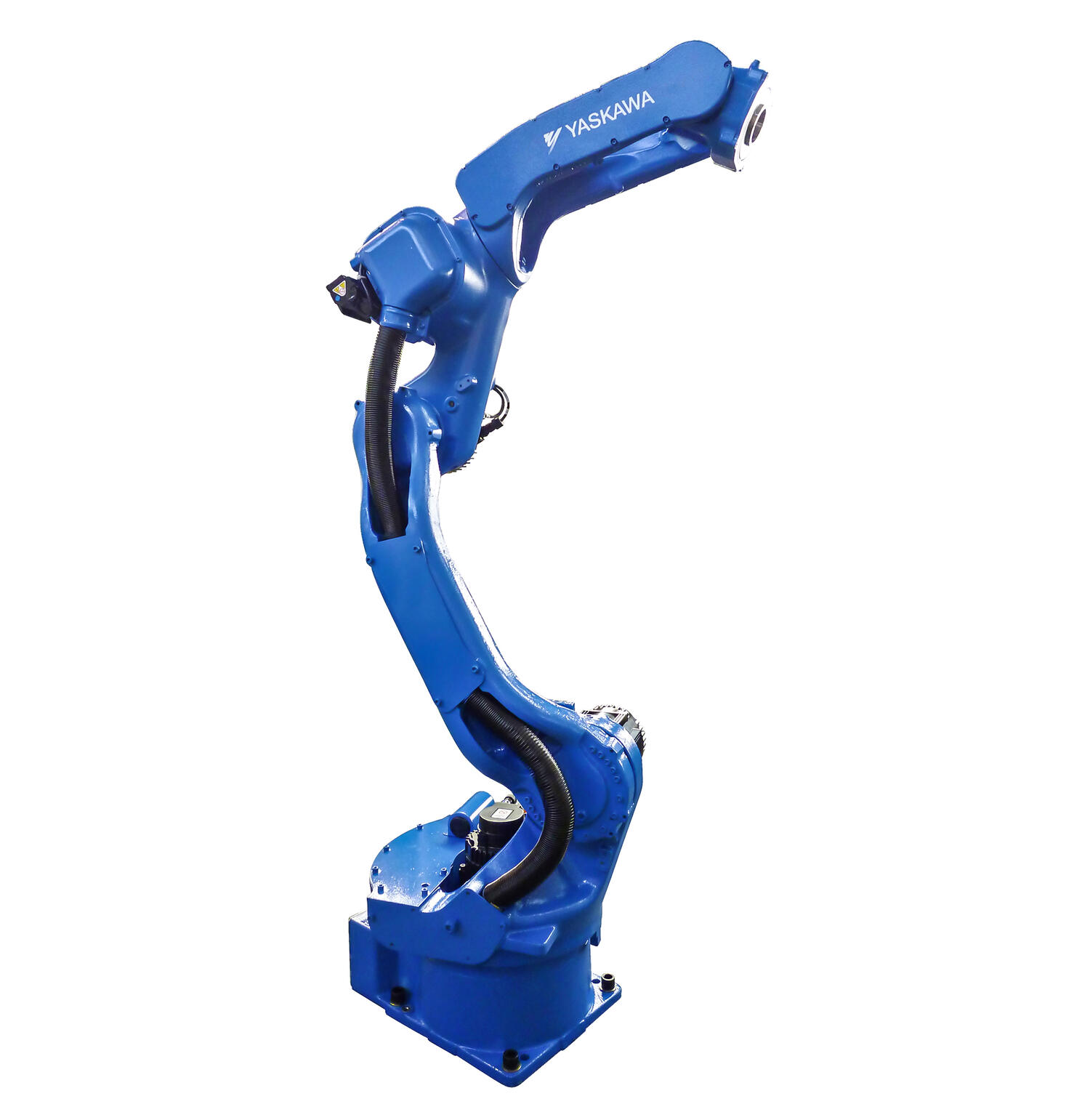

Motoman MH12
The Motoman MH12 is a powerful 6-axis, high speed robot. Ideal for applications such as material handling, packaging, dispensing, and more, the Motoman MH12 is sure to enhance your production.
The Motoman MH12 robot has an IP67 rated wrist and an IP54 rated body. It has a wider horizontal and vertical reach, allowing for a wider range of applications. Able to perform at fast speeds, this MH12 can reduce cycle time while maintaining efficiency.
Advance today with a Motoman MH12 material handling robot.
robots-for-more-information
Robot Specifications
- Axes:
- 6
- Payload:
- 12kg
- H-Reach:
- 1440mm
- Repeatability:
- ±0.08mm
- Robot Mass:
- 130kg
- Structure:
- Articulated
- Mounting:
- Floor
Robot Motion Speed
- J1
- 220 °/s (3.84 rad/s)
- J2
- 200 °/s (3.49 rad/s)
- J3
- 220 °/s (3.84 rad/s)
- J4
- 410 °/s (7.16 rad/s)
- J5
- 410 °/s (7.16 rad/s)
- J6
- 610 °/s (10.65 rad/s)
Robot Motion Range
- J1
- ±170°
- J2
- +155° - 90°
- J3
- +240° - 175°
- J4
- ±180°
- J5
- ±135°
- J6
- ±360°
